Product Name：Europe/Australia Version Industrial Routers

Model：USR-G806-E/AU

industrial Wireless 4G LTE Router,network supports 2G/3G/4G USR-G806-E/AU

industrial routers USR-G806-E/AU adopt high-performance and embedded structure. Industrial routers USR-G806-E/AU are widely used in industrial control, smart electricity, personal health care, smart home to transmit data.

List of LTE networks: https://en.wikipedia.org/wiki/List_of_LTE_networks

Different Model for industrial Routers

Model	Carrier/Region	2G/3G/4G Bands
-E Version	Europe/International (EMEA, Korea Thailand,India) (HongKong)	FDD:B1/2/3/5/7/8/20 TDD:B38/40/41 HSPA/UMTS: B1/2/5/8 GSM/EDGE: B2/3/5/8
-E Version	Southeast Asia	FDD:B1/2/3/5/7/8/20 TDD:B38/40/41 HSPA/UMTS: B1/2/5/8 GSM/EDGE: B2/3/5/8
-AU Version	Australia Taiwan New Zeland Latin America	FDD:B1/2/3/5/7/8/28 TDD:B38/40/41 HSPA/UMTS: B1/2/5/8 GSM/EDGE: B2/3/5/8
-A Version	AT&T,T-Mobile/North America	FDD:B2/4/12 WCDM:B2/4/5

Multi encryption transmissions to ensure safety USR-G806-E/USR-G806-AU supports VPN+APN

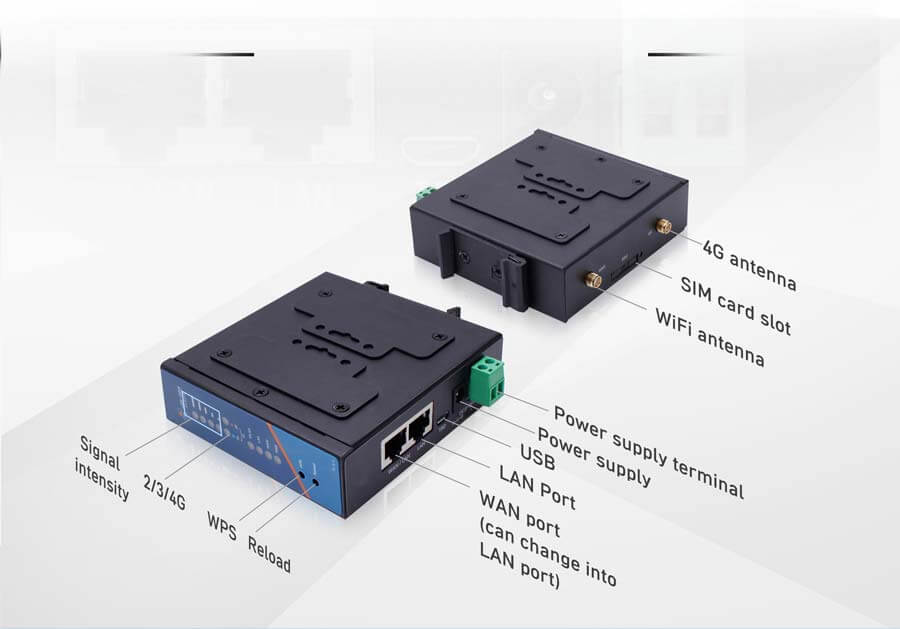

INTERFACES DISPLAY

High-Speed Access to Network

LAN/WAN, 2G,3G and 4G network gives seamless switching

Wide Coverage

Industrial routers USR-G806-E/AU use 5dbi 4G antenna and 3dbi high gain antenna
Distance can reach to 100M in open area

Multi encryption transmissions to ensure safety

Industrial routers USR-G806-E/AU support VPN+APN
Industrial routers USR-G806-E/AU support several protocols like PPTP、L2TP、IPSEC、
OPENVPN、GRE and SSTP.

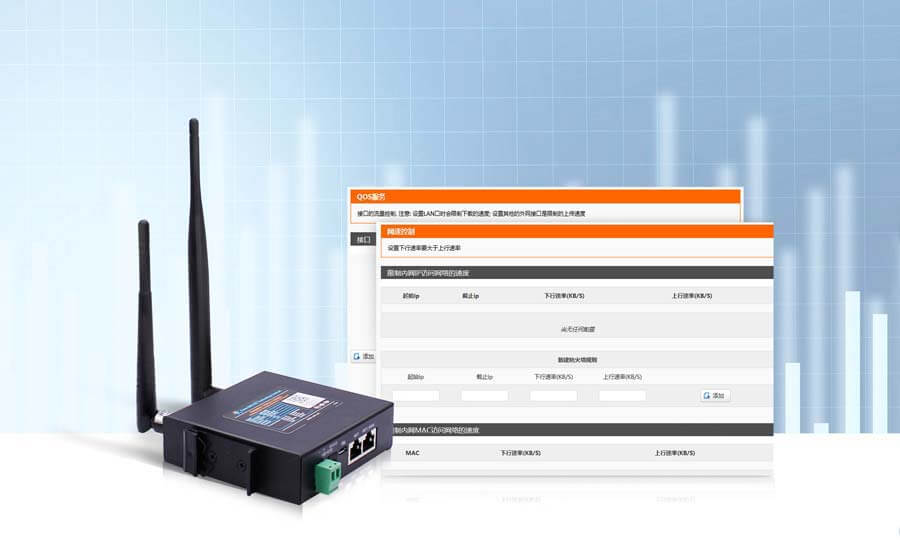

Intelligent management of control the traffic

Save traffic, and make online management easier

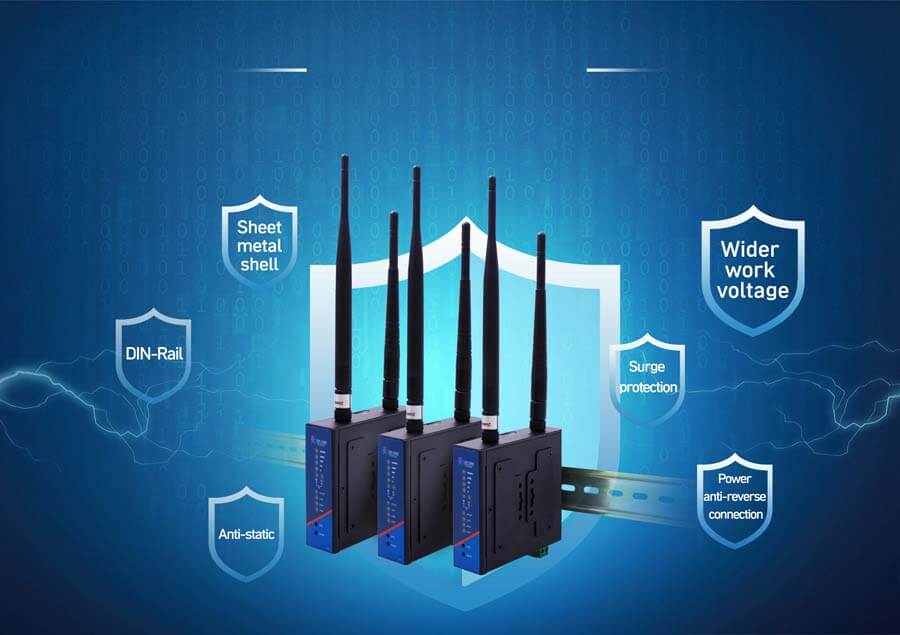

Wider work voltage, Surge protection,Power anti-reverse connection

Industrial routers, Industrial design

Several protection to ensure safety when it is used

Option networking modes

WAN port+ 4G networking mode

Double LAN ports + 4G networking mode

Add the number of devices
in network，Suitable for the scenarios
of high stability and data backup.

Saving the trouble of wiring,
decreasing man-power and thing-power,
reducing the effective cost. Suitable for
WAN environment with relatively
abundant fees.

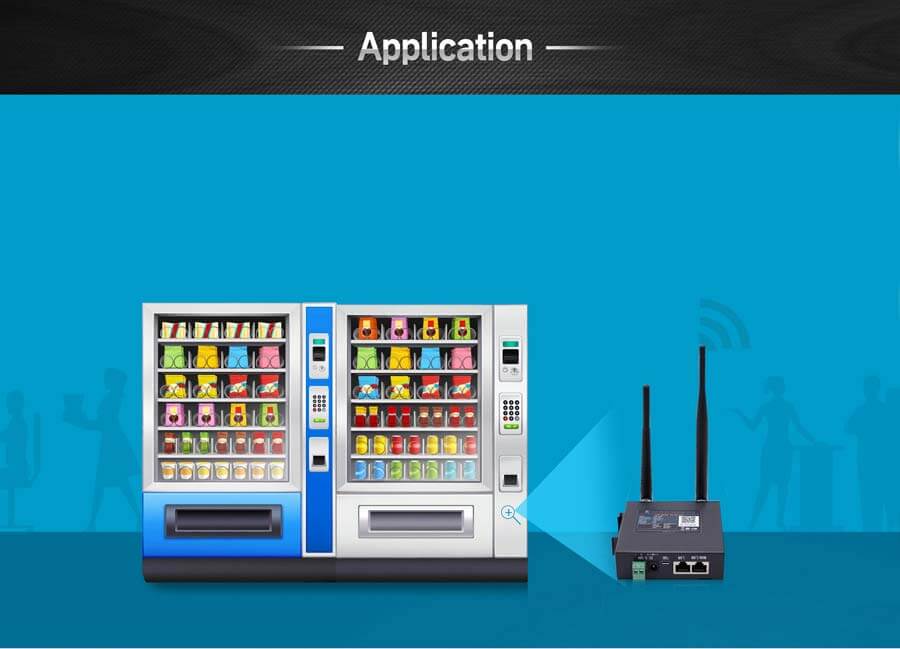

Self-service terminal transmission

Adapt to self-service terminals like supermarket game console, vending machine,
parcel express cabinet and so on. Collects data from consumer completely
to assist planning and adjustment of business strategy.
Manage remote upgrade, decrease the cost of maintenance.

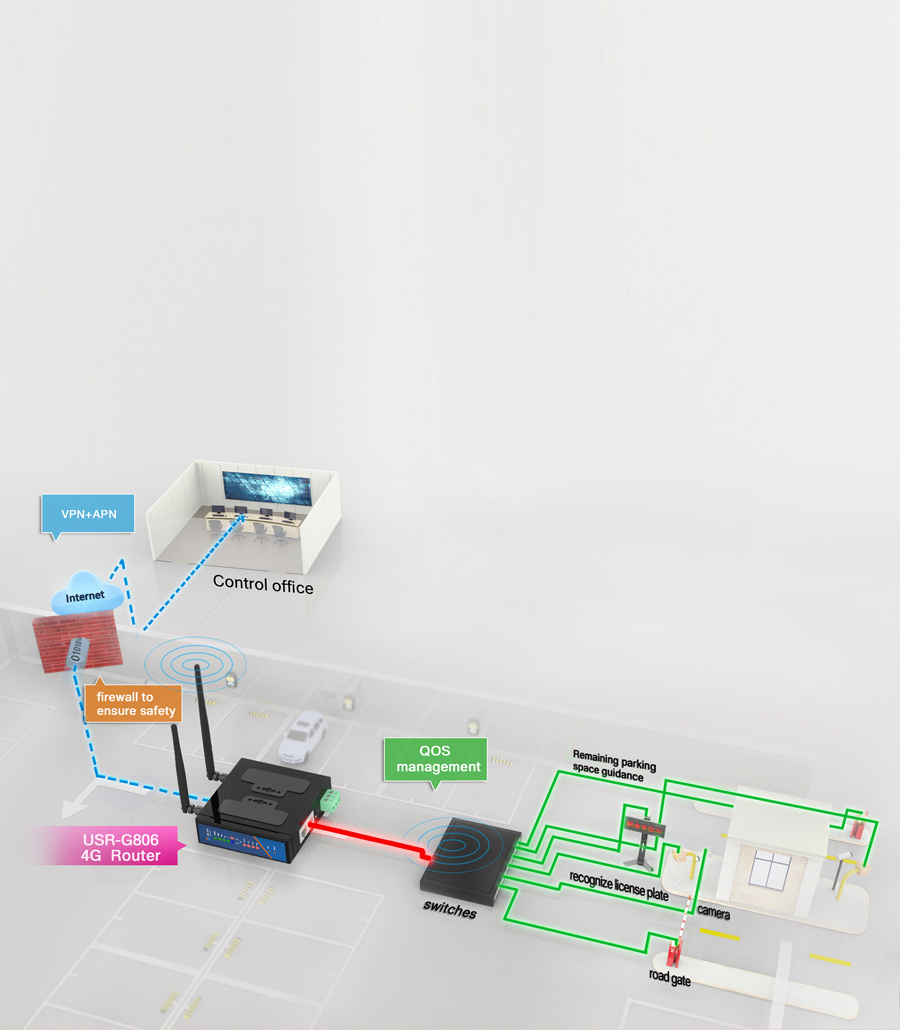

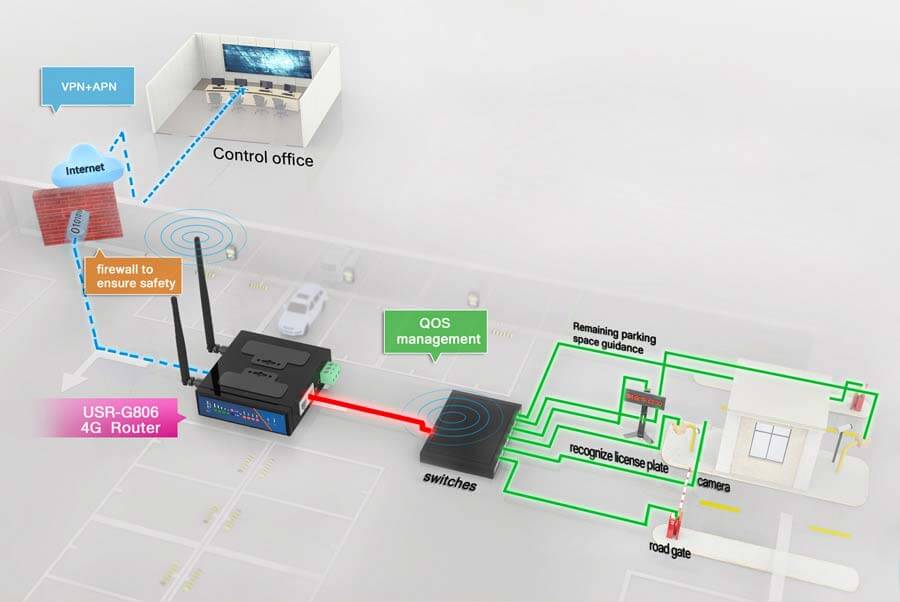

Intelligent parking lot transmission

The gate can choose wireless network and the indoor
can use the mode of WAN + 4G network. Fast accessing
to internet, remote management to accurate
transmission of parking status data
to create a comfortable parking experience.

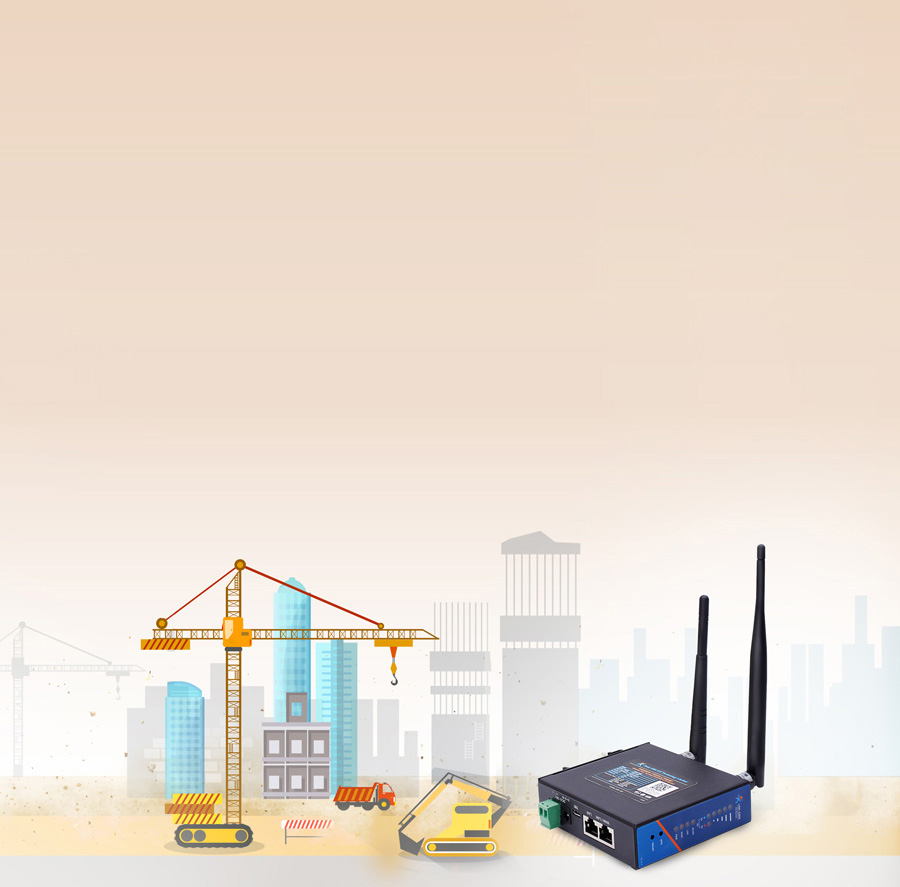

Environmental monitoring transmission

Connect internet in dust environment normally and anti-interference effectively.
Timely and effective transmission of data needed to be monitored in the environment.
Free choice of networking and remote realization of on-duty site.

Features of Industrial Routers USR-G806-E/AU

1. 1*LAN,1*WAN (WAN can switch to LAN), Auto MDI/MDIX/ WIFI 802.11b/g/n
2. Restore factory setting

Wireless	WIFI / 3G/4G
Power Supply	DC 5-36V
Frequency band	GSM/GPRS/EDGE, WCDMA, TD-LTE, FDD-LTE, TD-SCDMA
Configuration	Web page
Function	Watchdog, QOS management, DDNS, port-forwarding
Network	VPN(PPTP/L2TP), PPPOE, DHCP, Static IP
Certification	CE/RoHs

1. Static Router configuration and firewall

2. Traffic service can limit the speed depends on interface

SIM Card	Standard 6 Pin SIM card, 3V/1.8V card
Work Temp	-20~70C
Working Current	Average: 120mA, Max 246mA

industrial Routers,network supports 2G/3G/4G USR-G806-E/AU

USR-G806 is a industrial routers which adopts industrial high-performance and embedded structure, and industrial routers USR-G806 are widely used in industrial control, smart electricity, personal health care, smart home to transmit data.

List of LTE networks: https://en.wikipedia.org/wiki/List_of_LTE_networks

Different Model for industrial routers

Model	Carrier/Region	2G/3G/4G Bands
-E Version	Europe/International (EMEA, Korea Thailand,India) (HongKong)	FDD:B1/2/3/5/7/8/20 TDD:B38/40/41 HSPA/UMTS: B1/2/5/8 GSM/EDGE: B2/3/5/8
-E Version	Southeast Asia	FDD:B1/2/3/5/7/8/20 TDD:B38/40/41 HSPA/UMTS: B1/2/5/8 GSM/EDGE: B2/3/5/8
-AU Version	Australia Taiwan New Zeland Latin America	FDD:B1/2/3/5/7/8/28 TDD:B38/40/41 HSPA/UMTS: B1/2/5/8 GSM/EDGE: B2/3/5/8
-A Version	AT&T,T-Mobile/North America	FDD:B2/4/12 WCDM:B2/4/5

INTERFACES DISPLAY

High-Speed Access to Network

LAN/WAN, 2G,3G and 4G network gives seamless switching

Wide Coverage

Industrial routers USR-G806-E/AU use 5dbi 4G antennas and 3dbi high gain antennas
The distance can reach to 100M in an open area

Multi encryption transmissions to ensure safety

Industrial routers G806-E/AU support VPN+APN
USR-G806-E/AU support several protocols
like PPTP、L2TP、IPSEC、OPENVPN、GRE and SSTP.

Intelligent management of control the traffic

Save traffic, and make online management easier

Industrial design

Several protection to ensure safety when it is used

Option networking modes

WAN port+
4G networking mode

Double LAN ports +
4G networking mode

Add the number of devices
in network，Suitable for the
scenarios of high stability
and data backup.

Saving the trouble of wiring,
decreasing man-power and
thing-power, reducing the
effective cost. Suitable for
WAN environment with
relatively abundant fees.

Self-service terminal transmission

Adapt to self-service terminals like supermarket game
console, vending machine,parcel express cabinet and
so on. Collects data from consumer completely
to assist planning and adjustment of business strategy.
Manage remote upgrade, decrease the cost of maintenance.

Intelligent parking lot transmission

The gate can choose wireless network and the indoor
can use the mode of WAN + 4G network. Fast accessing
to internet, remote management to accurate
transmission of parking status data
to create a comfortable parking experience.

Environmental monitoring transmission

Connect internet in dust environment normally and
anti-interference effectively. Timely and effective
transmission of data needed to be monitored in the
environment. Free choice of networking and
remote realization of on-duty site.

Features of Industrial Routers

1.1*LAN,1*WAN (WAN can switch to LAN), Auto MDI/MDIX/ WIFI 802.11b/g/n
2.Restore factory setting

Wireless	WIFI / 3G/4G
Power Supply	DC 5-36V
Frequency band	GSM/GPRS/EDGE, WCDMA, TD-LTE, FDD-LTE, TD-SCDMA
Configuration	Web page
Function	Watchdog, QOS management, DDNS, port-forwarding
Network	VPN(PPTP/L2TP), PPPOE, DHCP, Static IP
Certification	CE/RoHs

1.Static Router configuration and firewall

2.Traffic service can limit the speed depends on interface

SIM Card	Standard 6 Pin SIM card, 3V/1.8V card
Work Temp	-20~70C
Working Current	Average: 120mA, Max 246mA

Ethernet Port
WAN port	WAN *1
LAN port	LAN * 1
	Both LAN port and WAN port with a rate of 10/100Mbps,Auto MDI/MDIX
WIFI
WIFI Network	Support 802.11b/g/n
Antenna	WIFI antenna *1
Specification
Interface	Mini PCI-E 52PIN
TD-LTE	3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps
FDD-LTE	3GPP R9: download rate of 150 Mbps; Upload rate of 50 Mbps
WCDMA	HSPA+: download rate of 21 Mbps; upload rate of 5.76 Mbps
TD-SCDMA	3GPP R9: download rate of 2.8 Mbps; upload rate of 2.2 Mbps
GSM/GPRS/EDGE	Download rate of 384 kbps; upload rate of 128 kbps
Frequency Band
TDD-LTE	Europe:Band 38/39/40/41, Australia: Band 40
FDD-LTE	Europe: Band 1/3/5/7/8/20, Australia:1/3/4/5/7/8/28
WCDMA	Europe: Band 1/5/8, Australia:1/2/5/8
TD-SCDMA	/
GSM/GPRS/EDGE	Asia:Band 3/8, Europe: Band 1/8, Australia:Band 2/3/5/8
SIM card&Antenna
SIM/USIM Card	Standard 6 pin SIM card, 3V/1.8V SIM card
Antenna	3/4G full-frequency antenna * 1
Temperature
Working Temp	-20°C~ +70°C
Storage Temp	-40°C~ +75°C
Humidity
Working Humidity	10%~90%
Storage Humidity	5%~90%
Power Supply
Working Voltage	DC 5~36V
Working Current	Average: 120mA; Max: 246mA (DC12V)

after-sale guarantee

Working Time：

Monday to Friday 8:30-18:00 in Beijing time. Message us online for a quick response when we are on-work. Or you can leave a message. Our sales will contact you as soon as possible. You can get free technical support & professional support for your project on our technical support h.usriot.com. Get in touch with us via email at sales@usriot.com. We want to help with any questions you have.

Delivery：

We will deliver goods as soon as possible after we received the order. The order generated on weekend and holidays will be handled after back. We ship the goods with the following carriers TNT, DHL, FedEx, UPS, shipping agent.

Warranty：

We provide one year's warranty of modules and two year's warranty of cellular routers, cellular modems, serial device servers for any reason. If you believe the item is defective and under warranty, please submit a Return or Exchange request on the product's support page, or contact us at support@usriot.com.
